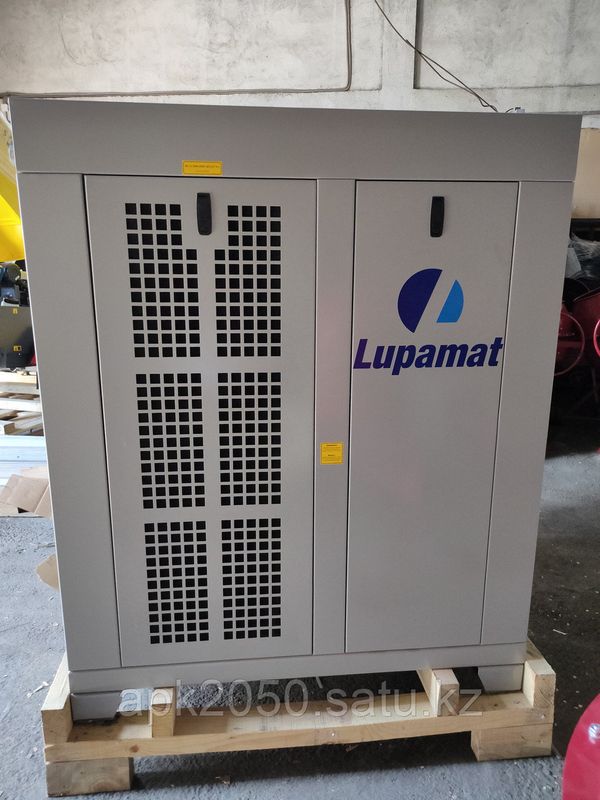

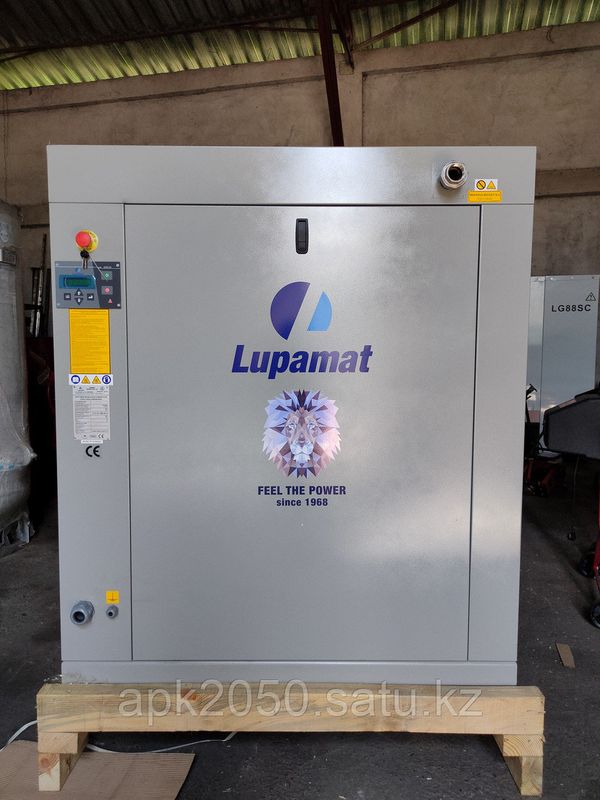

Electric compressor LKV 11 MI (11 kW)

description characteristic Compressor Type Screw Air Oil-Sprayed Compressor Max. Operating Pressure 7,5/10/13 The bar Performance (at 7.5 bars) * 1,72/1,49/1,28 m3/min. Shaft power (at 7.5 bar) 11.09 kW Specific power (at 7.5 bar) 6.44 kW/ m3/min Max.Ambient temperature 400C Electric motor 11 kW/15 hp; 2-pole (2945 rpm); 400V; 50 Hz; IP55; Insulation Class F; Mounting type B3; GAMAK brand, Energy efficiency class IE2 Cooling system Air cooling Fan motor and performance 0.2 kW; (1390 rpm); 400V; 50Hz --- 2675 m3/h /90 Pa Screw block CE55RW; GHH RAND (Germany) Hydraulic connections GATES(USA) Heat Exchanger EMMEGI(ITALY) Oil and air filters MANN+HUMMEL(GERMANY) Suction valve HOERBIGER(15 kW and above) – VMC (below 15 kW) Electrical components SCHNEIDER(FRANCE) The rotation speed of the screw.the block 6574 rpm Drive system Belt drive Connecting dimensions and cable cross-section 3/4" BSP --- 3x(2x4)+2,5+2,5mm² Length 1100 mm Width 760 mm Height 930 mm Weight 305 kg Noise level **69 dB(A) Error + 3 dB(A) Oil Lupamat LPM 68 Residual oil content 2-3 ppm (mg/m3) Model Pressure (bar) Efficiency M3/min Power, kVA LKV 7.5 MI 7,5-10-13 1,15 - 0.90 - 0,61 7.5 LKV11 MI 7,5-10-13 1.66 - 1.37 - 1.09 11 LKV 15 MI 7,5-10-13 2,37 - 1,94 - 1,54 15 LKV 18,5 MI 7,5-10-13 3,30 - 2,60 - 2,30 18,5 LKV 22 MI 7,5-10-13 3,90 - 3,20 - 2,73 22 LKV 30 MI 7,5-10-13 4,77 - 3,90 - 3,26 30 LKV 37 MI 7,5-10-13 6,21 - 5,2914,52 37 LKV 45 MI 7,5-10-13 7,44 - 0,30 - 5,47 45 LKV 55 MI 7,5-10-13 9,10 - 7,90 - 6,69 55 LKV 75 MI 7,5-10-13 12,80-11,10-9,70 75 LKV 90 MI 7,5-10-13 15,00-13,10-11,50 90 LKV 110 MI 7,5-10-13 17,80-15,40-13,50 110 LKV 132 MI 7,5-10-13 23,10-19,60-16,40 132 LKV 160 MI 7,5-10-13 27,10-23,10 -19,40 160
