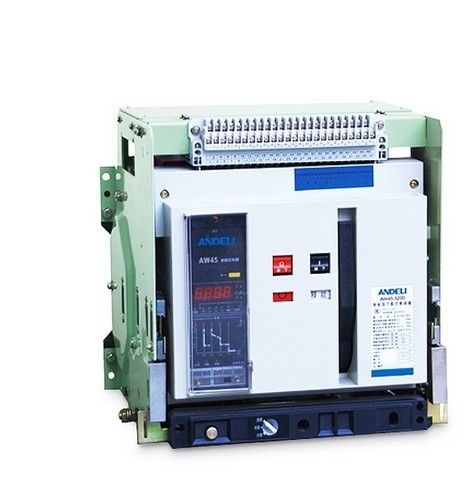

Circuit breaker AW45-3200 A Drawer Andeli draw-out type

Circuit breaker Andeli AW45‑3200A Drawer (draw-out type) — powerful low-voltage device for protection and control of electrical networks up to 3200 A. Circuit breakers of AW45 series by Andeli company are designed for protection of electrical networks against short-circuit currents, overloads and emergency modes, including single-phase earth faults. Model AW45-3200A Drawer is made in draw-out design, which provides convenient maintenance and replacement without disconnecting the entire switchgear. The circuit breaker is equipped with a microprocessor control and protection unit, which ensures selectivity, network parameter monitoring and informing personnel about causes of tripping. Used in low-voltage switchgear of industrial enterprises, residential and administrative buildings. Technical specifications: Model: Andeli AW45 3200A Drawer Type: circuit breaker, air vacuum, draw-out design Rated current (In): 3200 A Rated current range of series: 630–6300 A Rated operating voltage (Ue): up to 690 V AC Current frequency: 50/60 Hz Breaking capacity (Iq): up to 65–100 kA (depending on design) Number of poles: 3 Drive: manual or motor Design: stationary or draw-out Climatic design: U3 per GOST 15150 Protection degree: IP00 (higher when part of CSG) Operating conditions: temperature −40…+40 °C, altitude ≤ 1000 m Mechanical endurance: up to 10,000 "ON-OFF" cycles Protection functions: against SC, overloads, single-phase earth faults Additional: microprocessor protection and control units Advantages: High breaking capacity for powerful networks Convenient draw-out design for maintenance and replacement Selective protection with time delay Possibility of remote control via ACS Informing personnel about network and circuit breaker status Reliable protection against SC and overloads
